2 AJA Helo H.264 Streamer and Recorders added

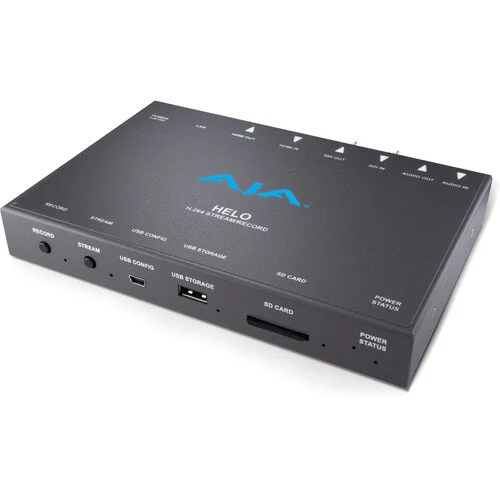

The HELO H.264 Streamer & Recorder from AJA is a stand-alone appliance which brings both SDI and HDMI input/output into a single appliance with the ability to simultaneously stream out to your Content Delivery Network (CDN) as well as encode and record H.264 files to SD cards, USB storage, or network-based storage simultaneously.
Portable and Ready-to-Use
With a small and robust form factor, HELO Recorder can be used in live events, webcasts, production and locations
Designed for continuous use to deliver with full connectivity
Offers both HD-SDI and HDMI source inputs in a single device with the ability to encode up to 1080p 60 in H.264
Streams out to your Content Delivery Network (CDN) and records to SD card, USB storage, or network-based storage simultaneously
Encode
Encodes to H.264/MPEG-4 ensuring bandwidth efficiencies with widely compatible files from tablets to smartphones, desktops to smart TVs
2-channel stereo audio can be encoded at up to 24-bit 48 kHz at data rates ranging from 32 KB/s to 256 KB/s in MPEG-4-LC, allowing you to make an appropriate choice for your project's needs
Stream
USB connection and robust web-browser based UI allows you to setup and configure your CDN connection
The stream button delivers your project across the recorder’s Ethernet connection, which allows support for RTP/RTSP, RTMP as well as Unicast
Record
Offers a dedicated record button right on the front of the recorder’s small and mobile interface for immediate recording
You can simply plug in your NTFS 3.1 or FAT 32 formatted USB drive, SD card, or connected network storage and start recording immediately
Mass Media
H.264-based encoding not only ensures efficiently sized files, it also means you have multiple recording medium options
Utilizes USB thumb sticks, drives and RAIDs, common SD or SDHC media or network sharing across a switch
Built-In Webserver
AJA eMini-Setup and recorder’s easy-to-use web-browser interface make it simple to setup, configure, and update firmware
You can connect to the recorder either via its direct USB port to set static/dynamic IP addresses through AJA eMini-Setup software or over the network using the web server generated UI
Multiple Choices
For Ki Pro or CION Users, the HELO Recorder expands your HD pipeline with up to 1080p60 support
You can connect via 3G-SDI or HDMI and record H.264 proxy files for fast onsite portable editing on a laptop and stream your live capture or playback as needed

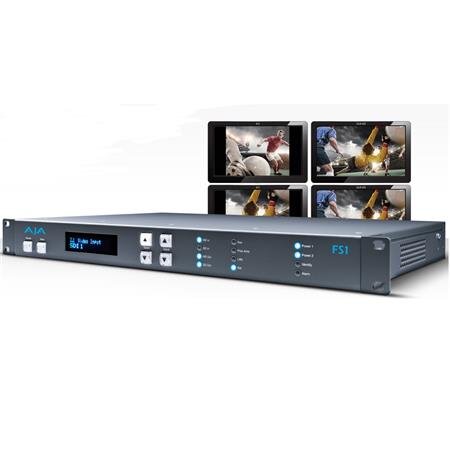

AJA FS1 Frame Synchronizer and Bi-directional Converter - HD and SD, Digital and Analog Audio, Rackmountable
The AJA FS1 is a universal SD/HD audio/video frame synchronizer and converter. This converter offers an "everything in, everything out" architecture. The FS1 can work simultaneously with both HD and SD video for broadcast quality video and 24-bit audio. Featuring BNC connectivity.
Video Conversion
The FS-1 can up or down-convert between SD and HD, and provide simultaneous HD and SD outputs.
Cross Conversions
Cross-conversions between HD formats are also supported, with simultaneous output of both formats.
Audio
The FS1 supports 8-channel AES, Balanced analog, or embedded audio offering the same any input to any output conversion.
Closed Captioning
The FS-1 supports closed captioning and the conversion of closed captioning between SD and HD formats.
AJA HD5DA 1x4 HD/SD-SDI Distribution Amplifier / Repeater with DWP
The AJA HD5DA 1x4 HD/SD-SDI Distribution Amplifier / Repeater with DWP features an auto-sensing input and four separately buffered outputs with automatic cable equalization (up to 410 ft in HD and 984 ft in SD by coax cable). Both input and outputs support embedded audio. A universal power supply comes included.
Blackmagic Design SmartView Duo is perfectly designed for building a video wall for monitoring all sources into live production switchers and because it's so incredibly thin, it's even perfect for portable setups where you need to save space.
Imagine having all your video sources displayed on large 8 inch LCD screens so you can see camera focus and quality! Now you can build full live broadcast presentation monitoring that's small enough to be fully portable! SmartView Duo is lightweight and thin, so it's perfect for outside broadcast vans or even installed into portable monitor racks to reduce shipping costs of flyway kits!

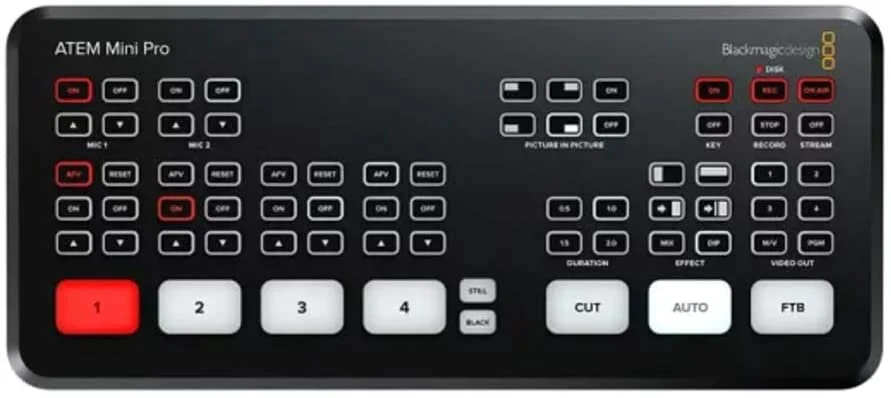

Black Magic ATEM Mini Pro
Similar to its predecessor, the ATEM Mini, the ATEM Mini Pro from Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multicamera live streaming up to HD video to the internet or broadcast applications from gaming consoles, corporate computer streams, or HD cameras. Along with the software control update, the Mini Pro builds on the Mini with features such as live stream data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with the Blackmagic MultiDock, added record and stream buttons, stream caching, a timecode generator, program preview multiview, tally support, and support for Blackmagic Design Pocket Cinema Camera 6K and 4K to utilize as your broadcast sources.
The ATEM Mini Pro retains the same rear-panel setup on which four HDMI inputs are available on the rear of the chassis and they input up to 1080p HD video. There is also an HDMI output for a projector or multiview monitoring, a USB Type-C output as for recording HD video to a computer, and an RJ45 10/100/1000 Ethernet port for direct live streaming as well as system management, remote control, and upgrades. You can adjust frame rate depending on the quality of your stream, and there is no need for additional streaming software because the Pro includes a built-in hardware encoder.
The updated ATEM Software Control Panel is used for control and configuration of the ATEM Mini Pro via USB or Ethernet, and it allows you to monitor the data rate, audio meters, configuration, and status of your live feed. The built-in color control panel has the same configuration of DaVinci Resolve, eliminating any learning curve. Advanced features include the ability for engineers to upload an XML configuration file to make it easier to change all your settings at once.
The control surface features the same easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The ATEM Mini Pro adds several buttons to the right side such as a quick record button, which allows you to instantly record your live stream to the connected USB source, or by holding it down, you can hot-swap drives when using the Blackmagic MultiDock if you need to quickly get down to editing. On Air and Stream buttons have also been added to instantly start and stop your stream once it is set up in software control. The added Video Out buttons on the right side allow you to select a program preview for each source, so you can make sure each source is ready to go for air.
The ATEM Mini Pro features the same upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats.
New Features
Same rear panel as ATEM Mini with added buttons and software features
Stream video up to 1080p HD
Quick stream, on-air and record buttons
Hardware encoder so there's no need for additional streaming software
Control and configure timecode, stream status
Full support and control features for BMPCC 6K and 4K cameras
Simultaneous USB recording
Integration with MultiDock for live hard drive switching
Customize advanced settings with XML files
Software multiview with program previews, graphics, record status, on air status, audio meters
Program preview input and output buttons
Tally light control for BMPCC 6K/4K cameras
Automatic timecode sync for all cameras
Transitions
Available transitions include:Cut: when you press the cut button, ATEM instantly changes from your current program source to the preview source. Cuts can be performed by directly selecting sources or by pressing the cut button to switch to the next source.Mix: the mix, or dissolve, gradually transitions from one source to the next by creating a smooth blend. You can set custom timings to manually blend the transition.Dip: just like mix transitions, a dip transition is a gradual blend that includes either a solid color, graphic, or another clip between the two video sources. Dips to black or white between sources are the most popular, or you can use logos or sponsor graphics.Wipe: built-in wipe patterns include circles, diamonds, squares, and more. Shapes and patterns can be inverted or softened and can even have customized colored borders.DVE: with the powerful built-in Digital Video Effects processor, or DVE, you can push, spin, squeeze, or swoosh your live video from one camera to the next with incredible built-in transitions. DVE transitions can be flip-flopped and reversed, giving you even more transition options.
Upstream Keyer
Layer live video over other video sources or graphics with the Upstream Keyer. You can use luma key, linear key, pattern key, or shoot against a green screen and use chroma key to instantly composite the video over virtual sets.Luma key: luma keys work best with high-contrast images, like white elements on a black background, so you can use the contrast to cut the black background and replace it with live video or graphics.Linear key: get clean, high-quality results with linear keying by using two separate sources for the fill and the key to create one video image. The fill signal contains the video to be stacked over the background, while the key signal contains a gray scale mask to cut out, or mask, the area to be filled.Chroma key: used every day for TV weather forecasts, chroma keys are a powerful way of combining live images in real time. The presenter typically stands in front of a green or blue background and the chroma keyer will remove only that color and combine it with another image, such as a video or graphic.Pattern key: combine live images with any of the built-in wipe patterns to combine live images or graphics with geometric shapes. You get full control over softness, symmetry, size, and position to create unique picture-in-picture effects that can be transitioned to as easily as any live source.
Downstream Keyers
The ATEM Mini switcher includes one downstream keyer, so you can add high-quality graphics like logos, bugs, and titles from the built-in media player over the live stream program output. Downstream keyers are the last layers of keying, so they overlay all video switched to the main program output.
Audio Mixer
The built-in audio mixer lets you control both camera and external audio with precision level and balance adjustments on all six available audio inputs and two channels. The mixer features selectable On/Off/Audio-Follow-Video per channel, plus it has separate gain control per channel, level and peak metering, and new Fairlight audio enhancements such as compressor, gate, limiter, six bands of parametric EQ, and master gain control.
Monitor Output
The HDMI monitor output allows you to see your sources, graphics, preview, and program output on a single screen.
Media Player
Eliminate external character generators by storing up to 20 broadcast-quality RGBA graphic files in the media pool. The one media player appears as input sources to your switcher. You can transition to graphics as full-frame video, or feed them to the keyers for overlaying video. Popular image formats such as PNG, TGA, BMP, GIF, JPEG, and TIFF are supported.
